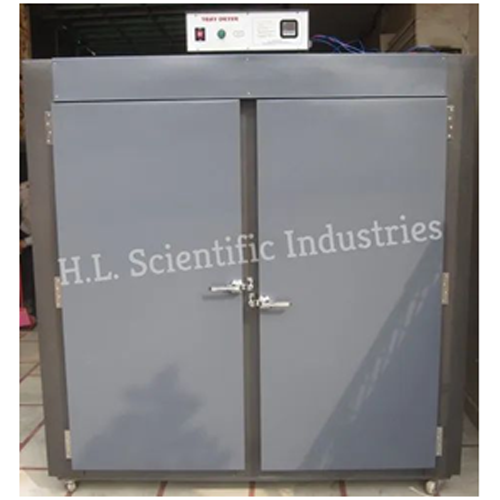

Tray Dryer Oven Manufacturers in india

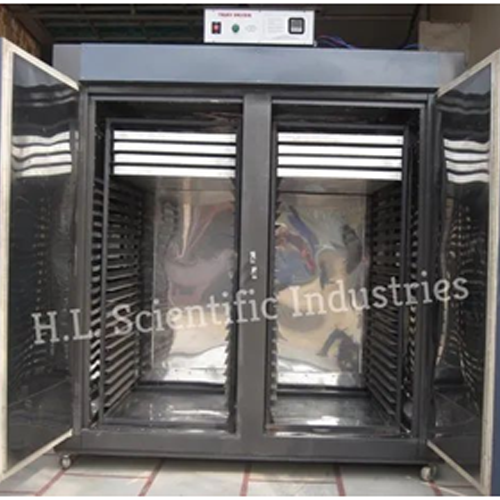

Tray Dryer Oven Manufacturers in india - Image 2

    1. Double walled unit mounted on a sturdy angle iron frame.
    2. Inner and outer made up of heavy M.S. Sheet.
    3. Outer body is hammertone painted.
    4. Supplied with Aluminum trays as per tray capacity of the unit.
    5. Inner body is painted with high temperature aluminum paint.
    6. Gap between two walls is filled with high-grade glass wool to minimize thermal loss.
    7. Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.
    8. Heating is brought about by strip type air heaters.
    9. Temperature range from ambient to 150oC.
    10. Temperature is controlled by Microprocessor Based PID Digital Temp. Indicator-cum-Controller with an accuracy of + 1oC.
    11. Ventilation is provided with adjustable opening at the top to exhaust the fumes or vapours produced during processing.
    12. Heavy duty ‘V’ belt driven motor of suitable capacity provides forced air circulation so as to ensure uniform heating throughout the inner chamber.
    13. A separate control panel is fitted to the chamber with individual control for ON / OFF and air circulating fan.
    14. To work on 220 Volts or 400/440 Volts A.C. supply only.

Category:

Description

H.L. Scientific Industries, based in Ambala Cantt, Haryana, is a reputable manufacturer and exporter of laboratory and scientific equipment, including tray drying ovens. Established in 1963, the company holds ISO 9001:2008, CE, and GMP certifications, underscoring its commitment to quality and compliance.

🔧 Tray Drying Oven Specifications

The tray drying ovens offered by H.L. Scientific Industries are designed for efficient drying processes in laboratories and industrial settings. Key specifications include:

  • Temperature Range: Up to 150°C

  • Material: Mild Steel with a hammertone painted exterior and high-temperature aluminum-painted interior

  • Insulation: High-grade glass wool between double walls to minimize thermal loss

  • Heating Mechanism: Strip-type air heaters

  • Shelving: Adjustable brackets to support heavily laden trays

  • Power Source: Electricity

  • Operating Voltage: 220V or 400/440V

  • Chamber Sizes: Available in various dimensions, such as:

    • 450 x 450 x 450 mm (18″ x 18″ x 18″) with 2 shelves

    • 600 x 600 x 600 mm (24″ x 24″ x 24″) with 2 shelves

    • 900 x 600 x 600 mm (36″ x 24″ x 24″) with 2 shelves

    • 900 x 900 x 900 mm (36″ x 36″ x 36″) with 3 shelves

    • 1200 x 1200 x 1200 mm (48″ x 48″ x 48″) with 4 shelves

These ovens are suitable for various applications, including drying, baking, and curing processes in laboratories, pharmaceutical industries, and research institutions.

💰 Pricing and Availability

The tray drying ovens are competitively priced, with models starting at approximately ₹33,000 per unit. For instance, a model with dimensions 600 x 500 x 50 mm is listed at ₹33,000 on TradeIndia. Prices may vary based on size and specifications.

📞 Contact Information

For inquiries or to place an order, you can reach out to H.L. Scientific Industries through the following channels:

OPTIONAL ACCESSORIES
A. Additional Standard Tray of size 800 x 400 x 30 mm, if required.
B. AUTO TIME CONTROL UNIT : Specially designed MICROPROCESSOR BASED PID DIGITIAL TEMPERATURE INDICATOR-cum-controller with an in-built DIGITAL TIMER to control the temperature from 50oC to 150oC (+1oC). Once the unit is switched heating starts automatically and once the set/desired value is achieved the In-built AUTOMATIC DIGITAL MINUTE TIMER starts automatically. Once this set time period is over the heaters are switched “OFF” automatically and the unit sounds a BUZZER, thus alerting the user that process is complete. To cost extra, in lieu of MICROPROCESSOR based PID Digital Temperature Controller.

Chamber Size in mms Trays
430 x 840 x 650 8 trays of 16” x 32” x1 ¼” size
430 x 840 x 910 12 trays of 16” x 32” x1 ¼” size
910 x 840 x 910 24 trays of 16” x 32” x1 ¼” size
960 x 1270 x 1440 48 trays of 16” x 32” x1 ¼” size
960 x 1700 x 1700 96 trays of 16” x 32” x1 ¼” size
Operating Voltage 220 or 400/440 V
Country of Origin Made in India
Power Source Electricity
Material Mild Steel
Color Gray
I Deal In New Only
Max Temperature 150 Degree Celsius
Display Digital
