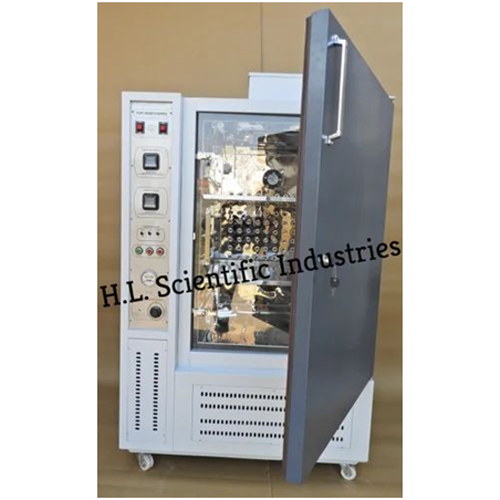

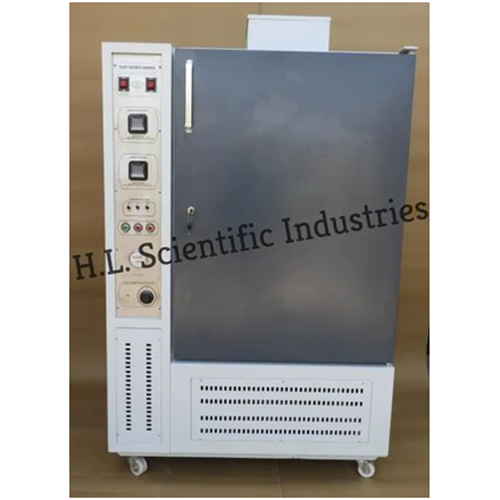

Physilab plant growth chamber



  • Plant Growth Chamber has outer wall made of m. S sheet duly painted and inner wall made up of heavy gauge stainless steel (304 grade)
  • besides outer double walled door, a full view inner glass door allows inspection of test samples without disturbing the inner chamber conditions.
  • unit is supplied with three adjustable perforated shelves.
  • finned tube evaporator.
  • temperature range from 5º c to 50º c ± 1º is controlled by setting microprocessor based digital temperature indicator cum controller so as to set two different temperature for day and night .
  • exterior illumination with fluorescent tubes accounts for artificial day light.
  • cyclic illumination conditions are regulated by automatic microprocessor based programmable timer.
  • when all the tubes are on temperature from 15º c to 50º c ± 1º c can be obtained.
  • CFC free eco friendly compressor.
  • to work on 220/230 volts a. C.

Description



Chamber Size in mms Cap. (Cu.Ft.) Cap. (apr.)
570x845x550 10 280 L
775x900x775 20 560 L
835x1200x825 30 840 L
900x1720x800 45.8 1282 L
1200x1200x1200 64 1792 L



Inner Wall Stainless Steel
Outer Wall Mild Steel
Shelves 3 Adjustable Shelves
Temperature Range 5 to 50 Degree Celsius
Voltage 220 V
Country of Origin Made in India
Brand Physilab
Usage/Application For Laboratory
