Description

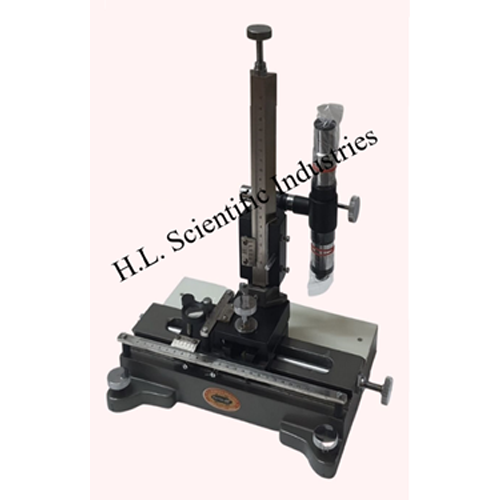

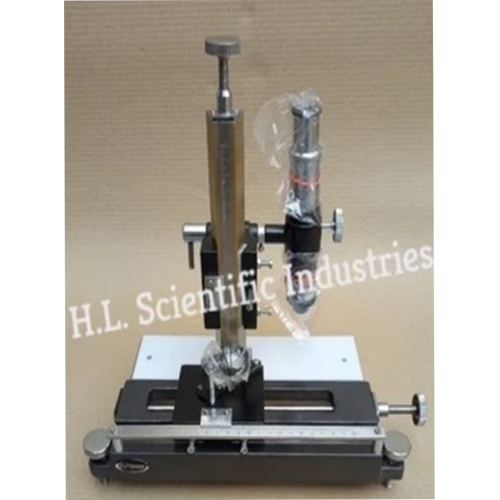

The Travelling Microscope by H.L. Scientific Industries is a precision instrument designed for accurate measurement in laboratory settings. It is particularly useful in physics experiments, such as determining the diameter of Newton’s rings or measuring small lengths with high precision.
🔍 Key Features & Specifications
-
Model: HL-TM-199
-
Brand: Physilab (a brand under H.L. Scientific Industries)
-
Eyepiece: 10x Ramsden eyepiece with cross-line graticule
-
Objective: Achromatic lens with a focal length of 2″ or 3″
-
Vernier Reading Accuracy: 0.02 mm or 0.01 mm
-
Travel Range:
-
Horizontal: 17 cm
-
Vertical: 14 cm
-
-
Scales:
-
Horizontal and vertical scales ranging from 0 to 20 cm, marked in 0.5 mm divisions
-
-
Construction:
-
Heavy cast iron base with three leveling screws for stability
-
Gunmetal carriage for smooth movement
-
-
Additional Features:
-
Swing-out magnifier for easy vernier reading
-
Portable design suitable for various laboratory environments
-
-
Country of Origin: India
This microscope is designed to provide precise measurements and is built with durable materials to ensure longevity in educational and research laboratories.
We are renowned as one of the preeminent travelling microscopes exporters from india. The travelling microscopes offered by us includes a heavy cast iron base fitted with three leveling screws with the top machined over which slides a gun metal carriage. A microscope tube is attached with a 10x ramsaden eye piece with cross line graticule & an achromatic 2″or 3″ focal length objective of high quality. The motorized traveling microscopes travel 17 cms horizontally and 14 cms vertically and guarantees accurate vernier reading 0. 02 or 0. 01 mm. With swing out magnifier for reading vernier.
