Seed Germinator Chamber Manufacturers india
Seed Germinator Chamber Manufacturers india - Image 2

Seed Germinator Single Door
Temperature range from 5°c to 50°c ±1°c is controlled by micro processor based PID
digital temperature cum controller. Humidity (not adjustable) range : from 90% to 95% ±3%. Chamber complete with 14 adjustable perforated trays. The double walled unit has inner chamber made of stainless steel and outer chamber
m. S sheet painted in epoxy powder coating. Trays made of stainless steel. Chamber in provided with S. S. Water reservoir at the bottom to work on 220/230 vac. Inside chamber size 555x910x605mm (w x h x d)
capacity: 308 ltrs.

Optional:

i) Digital temperature controller cum indicator
ii) 0-24 hrs. Time regulating cyclic illumination conditions.
iii) Automatic voltage stabilizer 3kva (recommended)
iv) Humidity control arrangement 55% 95% ±3% rh with digital humidity controller.
v) 2×16 line alphanumeric lcd display
vi. ) Data storage capacity

Category:

Description

H.L. Scientific Industries offers high-quality seed germinator chambers suitable for laboratory and agricultural research applications. These chambers are designed to provide controlled environments for seed germination and plant growth studies.

🌱 Product Overview: Seed Germinator Chambers by H.L. Scientific Industries

H.L. Scientific Industries manufactures both single and double-door seed germinator chambers, catering to various research needs. These chambers are constructed with a stainless steel inner chamber and a mild steel outer body, ensuring durability and efficient thermal insulation.

Key Features:

  • Temperature Control: Microprocessor-based PID digital temperature controller maintains a range from 5°C to 50°C with an accuracy of ±1°C.

  • Humidity Control: Fixed humidity range of 90% to 95% RH, achieved through a stainless steel water reservoir at the chamber’s base.

  • Construction: Double-walled unit with PUF insulation; inner chamber made of stainless steel, outer chamber of epoxy powder-coated mild steel.

  • Capacity: Each chamber has an internal size of 555 x 910 x 605 mm (W x H x D) and a capacity of 308 liters.

  • Trays: Equipped with 14 adjustable perforated stainless steel trays.

  • Optional Features: Digital humidity controller (55% to 95% ±3% RH), 0-24 hour cyclic illumination timer, automatic voltage stabilizer (3 KVA), and data storage capabilities.

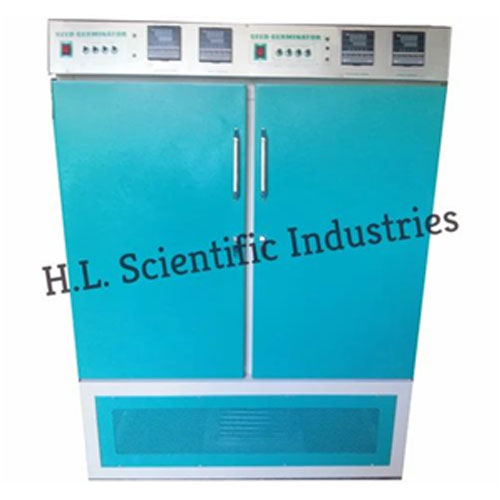

Seed Germinator (Double Door)
Model No: HL-2122
Details same as above But with dual chamber having following Parameters For coaling a sealed compressor unit has
been provided below the chamber to work independently.
Inside Size of Each Chamber: 555x910x605mm (Wx H x D)
Capacity: 308 Ltrs.
A. Heating and Coaling in separate Chamber made of anodized Aluminum/Stainless Steel.
B. Heating coaling in both Chambers and Chamber made of Stainless Steel.

Optional:
i) Automatic 0-24 hrs. Timer for regulating cyclic illumination condition.
ii) Humidity Control arrangement 55% to 95% ±3% RH with Digital Humidity Controller
iii) Automatic Voltage Stabilizer 3KVA (Recommended)



Usage/Application For Laboratory
Brand Physilab
Model No: HL-2121
Shape Rectangular
Automation Grade Manual
Country of Origin Made in India
Temperature Range 5 degree Celsius to 50 degree Celsius
Inner made Stainless steel
Outer Range Mild Steel

Among the listed products, the SEED GERMINATOR (DUAL CHAMBER) (Model No: HV-1107B) stands out for its dual-chamber design, allowing simultaneous experiments under different conditions. The Laboratory Seed Germinator (Single Chamber) and Seed Germinator – Stainless Steel Chamber 555x910x605 mm offer standard features suitable for most laboratory applications. The Seed Germinator Chamber provides a general-purpose solution, while the Seed Germinator (Single Chamber) – Industrial Application is tailored for industrial-scale operations.
