Description

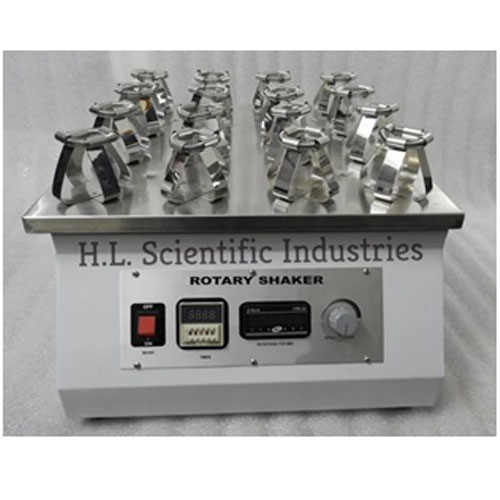

The Rotary Shaker (Platform Type) from H.L. Scientific Industries is a robust laboratory instrument designed for efficient mixing of solutions in various laboratory settings. Constructed with thick mild steel and finished with powder coating, it ensures durability and long-term use.
Key Specifications:
-
Speed Control: Available in both fixed and variable speed models, with an RPM range of up to 200 RPM.
-
Timer: Equipped with an electronic control timer ranging from 0 to 60 minutes.
-
Platform Options:
-
Size: Standard platform size is 45×45 cm, with larger options up to 105×105 cm.
-
Capacity: Can hold from 15 to 81 flasks, depending on flask size and platform dimensions.
-
-
Motor: Fitted with a heavy-duty PMDC motor suitable for continuous operation.
-
Power Requirements: Operates on 220 V AC, 50 Hz, single-phase power supply.
Additional Features:
-
Clamping Mechanism: The platform is provided with lotus-type clamps or rubber discs to securely hold flasks during operation.
-
Construction: The sturdy build ensures stability during high-speed operations, making it suitable for various laboratory applications.
| Platform sizes In cm | Holding Capacity | Motor type |
| 45 x 45 cm | 25 flasks of 100 ml | PMDC |
| 45 x 45 cm | 36 flasks of 50 ml | PMDC |
| 45 x 45 cm | 16 flasks of 250 ml | PMDC |
| 55 x 55 cm | 25 flasks of 250 ml | PMDC |
| 65 x 65 cm | 36 flasks of 250 ml | PMDC |
| 105 x 105 cm | 81 flasks of 250 ml | PMDC |
| 105 x 105 cm | 64 flasks of 500 ml | PMDC |
OPTIONAL (EXTRA COST)
- Digital R.P.M. indicator
- Digital Timer (0-99 min.)
| Usage/Application | for Laboratory |
| Brand | Physilab |
| Model Name/Number | HL-RS-170 |
| Voltage | 220 V |
| Motor Type | Heavy Duty PMDC Motor |
| Timer | 0-60 min |
| Material | Mild Steel |
| RPM Range | upto 250 RPM |
| RPM Indicator | Digital |
