Description
The Magnus MX21i and CH20i are both high-quality compound microscopes designed for clinical and educational applications. Both models offer options for integrating a digital camera, making them suitable for documentation and analysis.

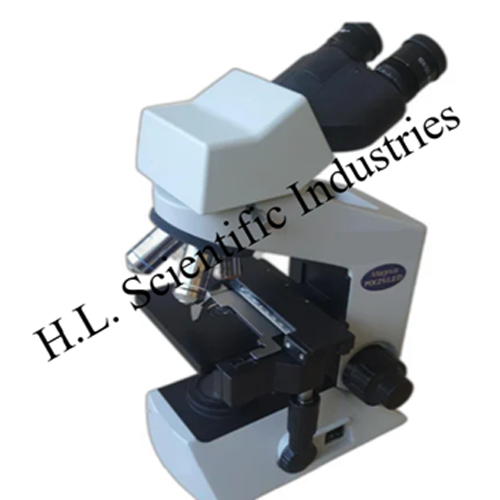

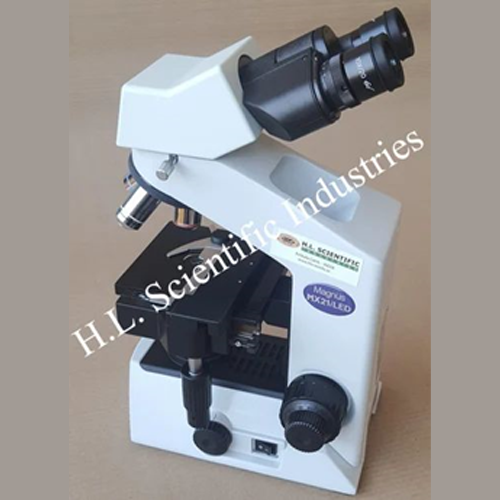

🔬 Magnus MX21i Microscope Overview
The MX21i is a premium clinical-grade microscope featuring:
-
Optical System: Infinity-corrected plan optics with anti-fungal treatment.
-
Objectives: Plan Achromat 4x, 10x, 40x (spring), and 100x (oil, spring).
-
Eyepieces: Widefield 10x (F.N. 20) with eyeguards.
-
Observation Head: 30° inclined Siedentopf binocular or trinocular head, 360° rotatable, with diopter adjustment.
-
Illumination: Options for 6V 20W halogen or 3W LED light sources, with some models offering battery backup.
-
Mechanical Stage: Rackless stage measuring 120 x 132 mm with a traverse area of 76 x 30 mm.
-
Focusing System: Co-axial coarse and fine focus controls with a coarse focus range of 20mm and fine focus rotation of 0.25mm.
-
Condenser: Pre-centered Abbe condenser (N.A. 1.25) with aperture iris diaphragm and removable blue filter.
-
Camera Compatibility: Supports MagCam digital cameras (3MP/5MP/10MP/HD).
This model is ideal for clinical laboratories requiring high-resolution imaging and documentation capabilities.
🔬 Magnus CH20i Microscope Overview
The CH20i is tailored for educational and routine laboratory use:
-
Optical System: Achromatic objectives with anti-fungal coating.
-
Objectives: Achromat 4x, 10x, 40x (spring), and 100x (oil, spring).
-
Eyepieces: Widefield 10x (F.N. 18).
-
Observation Head: 30° inclined Siedentopf binocular or trinocular head, 360° rotatable, with diopter adjustment.
-
Illumination: 6V 20W halogen or LED options.
-
Mechanical Stage: Rackless stage measuring 120 x 132 mm.
-
Focusing System: Co-axial coarse and fine focus controls.
-
Condenser: Abbe condenser (N.A. 1.25) with aperture iris diaphragm and removable blue filter.
-
Camera Compatibility: Supports MagCam digital cameras.
This model is suitable for educational institutions and laboratories focusing on routine observations.
📸 Camera Integration
Both the MX21i and CH20i models support the integration of MagCam digital cameras with resolutions of 3MP, 5MP, 10MP, or HD. These cameras facilitate the capture and analysis of microscopic images, enhancing documentation and sharing capabilities.
💰 Pricing Overview
Based on available information:
-
MX21i Binocular Microscope: Approximately ₹63,375 (excluding GST and transportation).
-
MX21i Trinocular Microscope: Approximately ₹66,250 (excluding GST and transportation).
-
CH20i Binocular Microscope: Approximately ₹45,315 (excluding GST and transportation).
-
CH20i Trinocular Microscope: Approximately ₹47,995 (excluding GST and transportation).
-
Weight 6 Kg Condenser Abbe Type with Aperture Iris Diaphragm N.A. 1.25 Focusing Stage height movement (coarse movement stroke 20 mm) Fine focus graduation 2.5 m Illumination System Built-in Transmitted Illumination System LED Observation Tube 30 Deg inclined binocular tube Interpupillary distance adjustment range 48-75 mm Optical System UIS2 (Universal Infinity System) optical system Power Consumption 1.7 W Power Supply AC 100-240 V, 50/60 Hz 0.4A Revolving Nosepiece Fixed quadruple Nosepiece Stage Wire Movement Mechanical Fixed Stage 120×132 mm Travelling Range 76 mm (X) x 30 mm (Y)
